Unleashing Power: The 6.4L HEMI V8 Engine Explained

Chrysler currently produces the largest OE gasoline V8 engine commercially available, and it stuffs it in a multitude of vehicles from Dodge Chargers to RAM trucks.

The 6.4L HEMI V8, known by the codename “Apache”, is a medium-duty 90-degree pushrod V8 with two large valves per cylinder, 16 spark plugs, 410 horsepower and 429ft-lbs of torque. Featuring all-forged internals, cross bolted main journals, a nodular cast-iron block and aluminum heads – Chrysler went all out on what would become one of the best V8s on the block in some time.

It is a gasoline V8 in a 3/4 ton truck though, right? So it has to be thirsty… or so you would think.

We are here to tell you that yes, absolutely – it is. But not as bad as you would think.

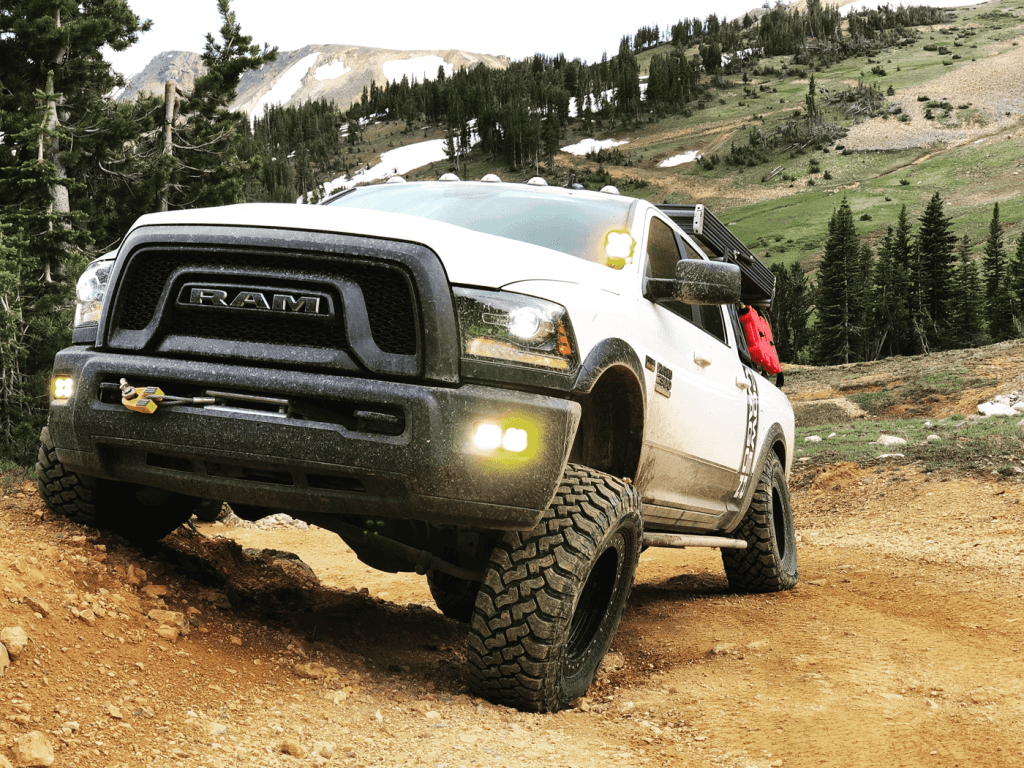

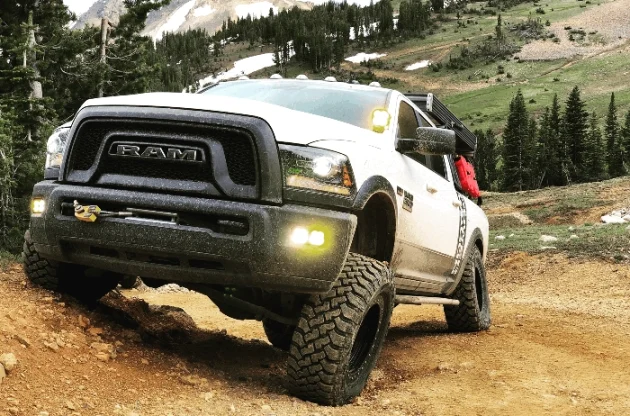

The vehicle of choice in this story is a 2017 RAM 2500 Power Wagon, which when stock had 285/70R17D Goodyear Wrangler Duratrac tires and a gear ratio of 4.11. Stock, the vehicle saw 12-13mpg returns in the city, and 16-17mpg on the highway.

In it’s current iteration, the Power Wagon is now rolling on 37×13.50R20E Falken Wildpeak MT’s and 20×9.5” Trail Ready Beadlock wheels, and returns roughly the same fuel economy numbers.

So yes, the Apache is thirsty – but its a thorn in your side you can live with.




FREQUENTLY ASKED QUESTIONS

How reliable is the 6.4L HEMI engine for long-term use?

The 6.4L HEMI engine is celebrated for its robust performance and reliability over the long haul. This V8 powerhouse is known for delivering impressive horsepower and torque, making it a favorite among enthusiasts who value both power and dependability.

Durability and Longevity

Owners report that this engine consistently performs well over extended periods, showcasing remarkable endurance under normal driving conditions. It’s designed with American pushrod technology, a testament to its sturdy construction, contributing to its long lifespan. With proper maintenance, the 6.4L HEMI can efficiently cover hundreds of thousands of miles.

Warranty and Assurance

To top it off, the engine typically comes with a substantial factory warranty, often around five years or 100,000 miles, providing additional peace of mind to users. This warranty is a strong indicator of the manufacturer’s confidence in the engine’s longevity and reliability.

Summary

Overall, the 6.4L HEMI engine stands out as a reliable option for those seeking a V8 that’s built to last. Its track record of durability, combined with robust warranty support, makes it a solid choice for long-term use.



What maintenance is recommended for the 6.4L HEMI engine to ensure its longevity?

Recommended Maintenance for the 6.4L HEMI Engine

To ensure the longevity of your 6.4L HEMI engine, it’s crucial to adhere to specific maintenance practices:

  • Oil Selection and Change: This engine relies on high-quality, thin 0W-40 oil. Always use the recommended oil to ensure optimal performance. Regular oil changes are essential, so stick to the manufacturer’s schedule to keep the engine running smoothly.
  • Cylinder Deactivation System Care: The 6.4L HEMI features a Cylinder Deactivation System that benefits significantly from using clean oil. Fresh oil helps maintain efficient engine operation, particularly with this system.
  • Routine Inspections and Services: Regularly check all fluid levels, and inspect components like spark plugs, air filters, and belts. Address any wear and tear promptly to prevent long-term damage.
  • Keep It Clean: Ensure that the engine bay remains free from debris. This helps components function properly and reduces the risk of overheating.

By following these maintenance tips, you can enjoy the powerful performance of your 6.4L HEMI engine for years to come.



What are the common problems associated with the 6.4L HEMI engine?

Common Problems with the 6.4L HEMI Engine

The 6.4L HEMI engine is renowned for its power and reliability, but like any machine, it’s not without its quirks. Here’s a closer look at some common issues you might encounter:

  • Hemi Ticking Sound: A familiar trait among HEMI engines, this subtle ticking noise is linked to the engine’s Multiple Displacement System (MDS). While the noise might be unsettling, it’s typically harmless. Proper maintenance, including regular oil changes using 0W-40 weight oil, is crucial.
  • Cylinder Deactivation Sensitivity: The engine’s MDS system requires clean, specific oil to function optimally. Skipping oil changes or using the wrong oil can lead to performance issues.
  • Exhaust Manifold Issues: The stock exhaust manifold is prone to distortion from high temperatures, potentially causing the manifold to warp and the studs to fail. This could lead to exhaust leaks and might require replacement parts.
  • Engine Bottom End Limitations: Designed for durability rather than extreme power boosts, the stock engine’s bottom end can struggle under added stress. Non-forged pistons can limit the engine’s ability to handle significant power increases without risk of damage.
In Conclusion

The 6.4L HEMI is generally a robust engine, especially when used within its intended parameters. Regular maintenance and using recommended materials can help prevent many common issues, ensuring longevity and performance.



Why is the 6.4L HEMI engine not suitable for high levels of boost or power modifications?

Why the 6.4L HEMI Engine Isn’t Ideal for High Boost or Power Modifications

The 6.4L HEMI engine, while powerful in its stock form, presents some limitations when it comes to handling high levels of boost or significant power enhancements. Here’s why:

  1. Piston Construction: The engine’s pistons are not forged, which is a key factor when considering modifications for higher power output. Forged pistons are typically more durable under increased pressure and heat, making them essential for high-boost applications. In the 6.4L HEMI, the pistons lack sufficient material between the ring lands and the top, making them vulnerable to damage under intense conditions.
  2. Bottom-End Durability: The engine’s bottom end, which includes the crankshaft, connecting rods, and related components, isn’t designed to withstand the additional stress that comes with increased power. This foundational weakness means that the engine is more susceptible to failures if pushed beyond its intended performance limits.
  3. Exhaust Manifold Concerns: Another challenge is the exhaust manifold. Under high heat and pressure, the manifold may warp. This distortion can lead to the failure of the fastening studs, potentially causing leaks or further mechanical issues.

Overall, while the 6.4L HEMI is a robust engine for standard applications, these structural components make it less ideal for heavy modifications aimed at significantly boosting power and performance.



How does the cylinder head design of the 6.4L HEMI engine contribute to its performance?

The 6.4L HEMI engine’s cylinder head design plays a crucial role in enhancing its performance. Mimicking the structure of late 5.7 HEMI heads, each cylinder head includes two valves and dual spark plugs per cylinder—totaling 16 spark plugs. This setup optimizes the combustion process, ensuring efficient power delivery.

Enhanced Airflow

Key to its design is the increased cross-sectional area of the head ports, facilitating better airflow. The intake ports boast an 11% improvement, while exhaust ports see a 13% enhancement. This superior flow design contributes significantly to the engine’s ability to produce higher power outputs and improved fuel efficiency.

Optimized Combustion Chambers

The semi-hemispherical, oval-shaped combustion chambers are another standout feature. This unique shape allows for more effective air and fuel mixing, leading to explosive combustion and, consequently, more power.

Intake Manifold Varieties

For different vehicle applications, the engine utilizes distinct intake manifold designs. A plastic intake manifold with shorter runners caters to high-speed performance, ideal for sporty cars. Meanwhile, the truck variant of this engine employs an active dual-runner-length intake manifold. This versatile manifold adjusts to provide optimal performance across low and mid-range speeds while still maintaining the necessary power for high-end performance.

In summary, the thoughtful design of the 6.4L HEMI’s cylinder heads significantly contributes to its robust performance by improving airflow, enhancing combustion, and adapting the intake manifold to suit diverse driving needs.



What are the differences between the SRT and truck versions of the 6.4L HEMI engine?

Differences Between the SRT and Truck Versions of the 6.4L HEMI Engine

The 6.4L HEMI engine is renowned for its power and versatility, but it comes in two distinct versions tailored for different types of vehicles: the SRT performance models and trucks.

SRT Version: Built for Speed
  • Intake Manifold Design: The SRT variant features a plastic intake manifold with shorter runners. This design is optimized for high-speed performance, allowing the engine to breathe efficiently and deliver impressive horsepower, especially at higher RPMs.
  • Performance Focus: Geared towards delivering high-end power, the SRT engine variant is perfect for muscle cars and performance-oriented vehicles, where maximum speed and acceleration are key.
Truck Version: Balanced for Versatility
  • Active Dual-Runner Intake: The truck version of the 6.4L HEMI is designed with an active dual-runner-length intake manifold. This innovative feature caters to a broad range of engine speeds, enhancing performance in low to mid-range speeds without sacrificing the high-end power characteristics.
  • Adaptability: Suited for larger vehicles, this engine offers a balanced approach, providing the necessary torque needed for towing and hauling while maintaining efficiency and power across various driving conditions.

In summary, the main differences lie in the intake manifold design and the intended performance application. The SRT version prioritizes top-speed capabilities, whereas the truck version focuses on versatility and adaptability across diverse driving scenarios.



How does the 6.4L HEMI engine compare to the 5.7L HEMI and the 6.7L ISB Cummins engines?

Comparing the 6.4L HEMI, 5.7L HEMI, and 6.7L ISB Cummins Engines

When deciding between the 6.4L HEMI, 5.7L HEMI, and 6.7L ISB Cummins engines, the choice largely depends on your specific needs, as each has unique advantages.

6.4L HEMI

The 6.4-liter HEMI V8 is a naturally aspirated engine offering impressive power and torque, designed with a focus on performance. It evolved from its 5.7L counterpart with enhancements that make it ideal for heavy-duty tasks. This engine is well-suited for applications that require both strength and reliability, such as hauling and towing. Its solid performance makes it a popular choice for those who need a robust gasoline engine in trucks.

5.7L HEMI

The smaller 5.7-liter HEMI is also a V8 engine known for its balance of power and fuel efficiency. It’s a versatile option for those who value performance but don’t necessarily require the extra power offered by the 6.4L version. While it doesn’t offer the same torque as the 6.4L, it provides sufficient capability for everyday use and moderate towing tasks, making it a practical choice for light-duty pickups and passenger vehicles.

6.7L ISB Cummins

On the other hand, the 6.7-liter ISB Cummins is a turbocharged diesel engine prized for its incredible torque output. This engine is particularly advantageous for heavy-duty towing and long-distance hauling, offering superior fuel efficiency compared to its gasoline counterparts. Its durability and towing capacity make it the engine of choice for serious commercial and industrial applications.

In summary, choose the 6.4L HEMI for a blend of power and versatility in gasoline form, the 5.7L HEMI for a more economical V8 option, or go with the 6.7L ISB Cummins if your needs demand maximum torque and efficiency in a diesel engine.



How does the Multi Displacement System (MDS) work in the 6.4L HEMI truck engine?

The Multi Displacement System (MDS) in the 6.4L HEMI truck engine enhances efficiency by utilizing an intelligent cylinder deactivation process. This system seamlessly integrates with the engine’s architecture and intelligently reduces the number of active cylinders when full power isn’t required.

Here’s a breakdown of how it works:
  • Cylinder Deactivation: When cruising on highways or during light-load conditions, the MDS system deactivates four cylinders. This is achieved by cutting off the fuel supply and disabling the valve lifters for these cylinders.
  • Reduction of Pumping Losses: By shutting down the valve lifters, the system minimizes unnecessary pumping losses, which enhances fuel efficiency.
  • Fuel Compatibility: The 6.4L HEMI engine is versatile, running efficiently on both 89 and 87 octane gasoline, ensuring that the MDS system supports fuel economy without sacrificing performance.

This technology allows for improved fuel consumption without detracting from the engine’s power capabilities when they are required.



What is the origin and history of the 6.4L 392 HEMI engine?

The Origin and History of the 6.4L 392 HEMI Engine

Introduction to the 6.4L HEMI

In 2011, a significant development in automotive engineering was unveiled with the introduction of the 6.4-liter HEMI engine. This powertrain made its first appearance in the sporty lineup of American muscle cars. Its conception marked a leap forward from its predecessor, the 5.7-liter HEMI engine, by enhancing both power and performance.

Evolution and Adaptation

Initially launched for muscle cars, by 2014, the 6.4L HEMI engine found its place under the hood of more robust vehicles. Its versatility and power made it an ideal choice for heavy-duty trucks seeking enhanced towing capabilities. These trucks needed the kind of horsepower and torque that this engine could deliver, especially when compared to its smaller sibling, the 5.7L version.

Design and Performance

The architecture of the 6.4L HEMI took inspiration from the earlier 5.7L model, yet introduced advancements that catered to the needs of drivers requiring more power. This naturally aspirated V8 engine was crafted to provide not just higher speed and acceleration for cars, but also the strength necessary for hauling and towing tasks in larger trucks.

A Distinct Alternative

While turbocharged diesel engines often dominated the heavy-duty segment, the 6.4L 392 HEMI positioned itself as a powerful gasoline alternative. Its introduction provided truck owners who preferred gasoline engines with a viable option, balancing the expectations of power without the complexities of diesel systems.

In summary, the 6.4L 392 HEMI engine represents a convergence of innovation and adaptation, tracing its roots back to earlier HEMI engines but evolving to meet a broader range of automotive needs. Its legacy continues as a versatile powerhouse in the automotive world.



What materials are used in the construction of the 6.4L HEMI engine’s components?

Featuring all-forged internals, cross-bolted main journals, a nodular cast-iron block, and aluminum heads – Chryslerwent all out on what would become one of the best V8s on the block in some time. This powerhouse not only boasts impressive performance but also showcases meticulous craftsmanship in its construction materials.

Engine Construction Details
  • Cylinder Block Material: Cast Iron
  • Cylinder Head Material: Aluminum

These carefully chosen materials ensure durability and efficiency, forming the backbone of the 6.4L HEMI engine’s robust design. By combining the strength of cast iron with the lightweight properties of aluminum, Chrysler has crafted an engine that stands up to the rigors of high performance while maintaining optimal weight distribution.



Where is the engine manufactured?

The engine is produced at the Saltillo Engine Plant located in Ramos Arizpe, Mexico.



Who is the manufacturer of the engine?

The engine is manufactured by Chrysler.



What are the key design features of the 6.4L HEMI engine?

Chrysler currently produces the largest OE gasoline V8 engine commercially available, and it stuffs it in a multitude of vehicles from Dodge Chargers to RAM trucks. The 6.4L HEMI V8, known by the codename “Apache”, is a medium-duty 90-degree pushrod V8 with two large valves per cylinder, 16 spark plugs, 410 horsepower, and 429 ft-lbs of torque. Featuring all-forged internals, cross-bolted main journals, a nodular cast-iron block, and aluminum heads – Chrysler went all out on what would become one of the best V8s on the block in some time.

Key Design Features of the 6.4L HEMI
  • Cylinder Block and Crankshaft: Built around a 90-degree, cast-iron cylinder block with a deep-skirt design, the 6.4L HEMI includes a forged steel crankshaft. This robust construction ensures durability and performance.
  • Piston Cooling and Oil System: The engine block is equipped with piston cooling jets, which spray oil on the bottom of each piston to dissipate combustion heat. This feature is complemented by an oil-to-water oil cooler, enhancing the engine’s thermal efficiency.
  • Connecting Rods and Pistons: Revised connecting rods made of high-strength powder metal and new, larger-diameter flat-top pistons contribute to the engine’s resilience and power output.
  • Cylinder Heads: The aluminum heads house two valves and two spark plugs per cylinder, with an 11% increase in the intake port flow and a 13% increase in the exhaust port flow. These enhancements optimize the combustion process.
  • Intake Manifold: The truck version of the 6.4L HEMI features an active dual-runner-length intake manifold, designed to boost low- and mid-range performance without sacrificing high-end power.
  • Variable Valve Timing (VVT): A cam-in-block VVT system uses a hydraulic cam phasing mechanism, elevating the engine’s adaptability and efficiency across various speed ranges.
  • Fuel Efficiency: The Multi Displacement System (MDS) deactivates four cylinders when full power isn’t required, improving fuel economy without compromising on capability. This system allows the engine to run on both 89 and standard 87 octane gasoline.

These meticulously crafted elements come together to form an engine that not only delivers impressive power but also maintains efficiency and reliability, making the 6.4L HEMI a standout in the world of V8 engines.



What type of fuel can the engine run on?

The engine can operate on both 89 octane and standard 87 octane gasoline.



What is the role of the variable valve timing (VVT) system in the engine?

The cam-in-block VVT system enhances engine performance by adjusting the valve timing through a hydraulic cam phasing system.



What systems are in place for optimizing fuel efficiency?

The engine uses a Multi Displacement System (MDS) that deactivates four cylinders during low power demand situations to reduce fuel consumption.



What types of intake manifolds are used in different applications of the engine?

SRT versions use a plastic intake manifold with shorter runners for high-speed performance, while truck versions have an active dual-runner-length intake manifold for balanced power across various speeds.



How are the cylinder heads designed, and how do they enhance performance?

The cylinder heads have two valves and two spark plugs per cylinder, with semi-hemispherical combustion chambers. They have enhanced port flow for improved intake and exhaust efficiency.



What materials and design features are used in the construction of the engine block and internals?

The 6.4L HEMI features a cast-iron cylinder block with cross-bolted main bearing caps, a forged steel crankshaft, piston cooling jets, and connecting rods made from high-strength powder metal.



What are the differences between the 5.7L and 6.4L HEMI engines?

The 6.4L HEMI differs from the 5.7L version in both bore diameter and stroke size, despite sharing the same 90-degree cast-iron block design.



How does the 6.4L HEMI’s Cylinder Deactivation System (MDS) function?

How the 6.4L HEMI’s Cylinder Deactivation System Works

The 6.4L HEMI engine features an innovative Cylinder Deactivation System known as the Multi Displacement System (MDS). Designed for efficiency, this system seamlessly integrates with the engine’s original setup to optimize fuel usage and performance.

Functionality
  • Selective Cylinder Shutdown: When full engine power isn’t necessary, such as while cruising on the highway, MDS steps in by deactivating fuel delivery to four of the engine’s eight cylinders.
  • Reducing Pumping Losses: To further enhance efficiency, the system also disengages the valve lifters for the inactive cylinders, reducing energy waste.
Fuel Flexibility
  • The engine runs optimally on 89 octane gas but is also capable of operating on standard 87 octane, providing flexibility at the fuel pump.

By seamlessly alternating between eight and four cylinders, the 6.4L HEMI’s MDS balances power and efficiency, ensuring a reliable driving experience without compromising performance.



What are the limitations of the 6.4L HEMI engine in terms of boosting power?

When considering the limitations of the 6.4L HEMI engine for boosting power, several factors come into play. Firstly, the engine’s design does not inherently support high levels of boost. This is largely due to the stock bottom end, which isn’t built to endure the additional stress from increased power levels.

Key Limitations:
  • Pistons and Ring Lands: One of the critical weaknesses lies within the pistons. They are not forged, which inherently makes them less durable under high-pressure conditions. Moreover, there isn’t sufficient material between the ring lands and the top of the piston, leading to potential structural failures under heavy boost.
  • Exhaust Manifold: The exhaust manifold is prone to overheating, and excessive temperatures can cause warping. This may lead to the failure of the fastening studs, compounding reliability issues.
  • Comparative Robustness: Unlike some other engine series, such as GM’s LS series, the 6.4L HEMI doesn’t excel in terms of versatility and durability when it comes to adding aftermarket boost systems.

These aspects collectively imply that anyone considering modifications to significantly boost the power of a 6.4L HEMI should be wary. The engine’s design doesn’t lend itself easily to such enhancements without substantial upgrades to critical components.



How does the 6.4L HEMI engine compare to the 5.7L HEMI engine?

Comparing the 6.4L HEMI Engine to the 5.7L HEMI Engine

The 6.4L and 5.7L HEMI engines share a foundational design characterized by a 90-degree, cast-iron cylinder block with a deep-skirt architecture. However, the similarities largely end there, as these engines diverge significantly in specifications and capabilities.

Core Differences
  1. Bore and Stroke: The 6.4L engine does not share the bore diameter or stroke size with the 5.7L, allowing it to deliver enhanced power and efficiency.
  2. Crankshaft: Unlike the 5.7L, the 6.4L features a forged steel crankshaft, contributing to its robustness and ability to handle higher stress levels.
  3. Cooling Enhancements: To manage the additional heat generated by increased performance, the 6.4L incorporates piston cooling jets, also known as oil squirters. These components spray oil onto the pistons, effectively reducing combustion heat. Additionally, an oil-to-water cooler further aids in maintaining optimal oil temperature.
  4. Connecting Rods and Pistons: The 6.4L engine is outfitted with durable, powder metal connecting rods and larger flat-top pistons, differentiating it from the components used in the 5.7L.
Cylinder Heads and Valvetrain
  • The cylinder heads in the 6.4L engine have been refined from the 5.7L version. While both engines feature two valves and two spark plugs per cylinder, the 6.4L offers improved intake and exhaust port flow, with an 11% and 13% increase, respectively.
  • It adopts a cam-in-block variable valve timing system with hydraulic cam phasing for enhanced performance across various engine speeds, a feature not found in the 5.7L.
Intake Manifold and Configuration
  • 6.4L Intake Options: The high-performance version used in sports cars uses a shorter runner intake manifold for increased speed potential, while the truck variant features an active dual-runner-length design for better power distribution across low and mid-range speeds.
  • Both the 6.4L truck and high-speed models utilize drive-by-wire throttle bodies for precise throttle control.
Conclusion

In essence, the 6.4L HEMI engine represents a significant upgrade over the 5.7L, with enhancements in power delivery, cooling efficiency, and overall engine performance. This makes it a more suitable choice for drivers seeking both everyday reliability and the capability to handle demanding driving conditions.



How reliable is the 6.4L HEMI engine for daily use?

The 6.4L 392 HEMI engine is revered for its robust performance and reliability, especially for daily driving. Users often praise its ample power and torque, making it a trusty companion for both everyday commutes and more demanding tasks.

Common Concerns

You might hear about the infamous “Hemi ticking,” a characteristic sound tied to the Multi-Displacement System (MDS). While it may raise questions, this tick is generally harmless and doesn’t impact the engine’s overall performance or longevity.

Maintenance is Key

To ensure the engine remains dependable, adhering to maintenance schedules is crucial. The MDS system requires the use of specific oil—thin 0W-40. This helps maintain proper lubrication and function. Regular oil changes with the recommended lubricant are essential to prevent wear and keep everything running smoothly.

Warranty and Assurance

The 6.4L HEMI comes with a five-year or 100,000-mile factory warranty, providing peace of mind and underscoring the manufacturer’s confidence in its durability. This coverage serves as an assurance of the engine’s sustained performance over time.

In summary, when maintained properly, the 6.4L HEMI engine is a reliable and powerful option for those seeking a steadfast V8 for daily use.



What are the common problems associated with the 6.4L HEMI engine?

Common Problems with the 6.4L HEMI Engine

The 6.4-liter HEMI engine is generally appreciated for its reliability and performance. However, like any mechanical component, it has its issues. Let’s delve into some common problems associated with this engine.

HEMI Tick

One of the most frequently discussed concerns is the “HEMI tick.” This sound is associated with the engine’s Multi-Displacement System (MDS), which is designed to improve fuel efficiency. While the noise can be unsettling, it doesn’t typically impact the engine’s performance or longevity.

Oil Requirements

The engine requires thin 0W-40 oil to accommodate the MDS system and ensure proper function. It’s crucial to adhere to this specification and change the oil regularly to maintain optimal engine health and avoid potential issues down the line.

Limitations for Modifications

The 6.4L HEMI isn’t engineered for significant modifications, such as adding turbochargers. The engine’s bottom end components, like the pistons, aren’t forged. This design choice limits its capability to handle boosted performance levels without risking damage.

  • Pistons: The stock pistons are not robust enough for extensive aftermarket tuning.
  • Exhaust Manifold: Excessive heat can cause this component to warp and potentially damage the fasteners, leading to exhaust leaks.
Conclusion

Overall, while the 6.4L HEMI is a strong contender for daily driving, those looking to push its boundaries with aftermarket modifications should proceed with caution. Regular maintenance and adhering to oil specifications are key to avoiding these common pitfalls.



What is the history and development of the 6.4L 392 HEMI engine?

The History and Development of the 6.4L 392 HEMIEngine

From Crate to Production

The journey of the 6.4L 392 HEMI engine began when Chrysler decided to transform its crate engine into a production powerhouse. This transformation first materialized in 2011 with its debut in the Dodge Challenger SRT8. The engine was a naturally aspirated V8, boasting a robust 6.4-liter capacity, and it shared its foundational architecture with the well-known 5.7L HEMI V8.

Expansion to Truck Models

By 2014, this engine underwent a critical upgrade. This revised version found its way into several heavy-duty truck models, such as the Ram 2500 and 3500, as well as the cab chassis variants of the Ram 3500, 4500, and 5500. The changes made the 6.4L HEMI more adept for tasks like hauling and towing, offering a more potent alternative to the smaller 5.7L engine and even standing as a gasoline counterpart to the diesel-powered 6.7L ISB Cummins.

Engine Design and Benefits

The re-engineering of the 6.4L HEMI was more than an increase in size—it was a leap in performance characteristics. Designed for greater power output and enhanced torque, this engine was not only about brute strength but also about reliability and versatility. The improvements allowed it to serve effectively in both high-performance sedans and rugged trucks, embodying a balance between muscle and endurance.

Common Issues and Longevity

Like any mechanical innovation, the 6.4L HEMI faced its share of challenges. Typical issues often revolve around standard wear and tear, with particular components needing attention over time. Despite this, the engine’s reputation for reliability has been solid, delivering a consistent performance that has contributed to its longevity across various applications.

In summary, the 6.4L 392 HEMI engine stands as a testament to evolutionary engineering, evolving from a specialty crate engine to a versatile workhorse in both high-performance and heavy-duty contexts.



What is the firing order and oil capacity of the 6.4L HEMI engine?

Firing Order and Oil Capacity of the 6.4L HEMI Engine

When it comes to understanding the 6.4L HEMI engine, two critical specifications often sought after are its firing order and oil capacity.

Firing Order

The firing order for the 6.4L HEMI is structured to optimize engine performance and maintain smooth operation. The sequence is 1-8-4-3-6-5-7-2. This arrangement is designed for efficient power distribution and engine balance.

Oil Capacity

For optimal performance and longevity, the 6.4L HEMI requires an engine oil volume of 6.7 liters, approximately 7.0 quarts, when including the oil filter. Proper oil levels ensure the engine is well-lubricated, extending its lifespan and enhancing performance.

Key Maintenance Tips
  • Regularly check oil levels to ensure they remain consistent with the engine’s capacity specification.
  • Adhere to recommended oil change intervals to maintain engine health and efficiency.

These details are vital for anyone looking to maintain or repair a vehicle equipped with a 6.4L HEMI engine, ensuring optimal performance and longevity.



What are the specifications of the 6.4L HEMI engine?

Chrysler currently produces the largest OE gasoline V8 engine commercially available, and it stuffs it in a multitude of vehicles from Dodge Chargers to RAM trucks.

The 6.4L HEMI V8, known by the codename “Apache”, is a medium-duty 90-degree pushrod V8 with two large valves per cylinder, 16 spark plugs, 410 horsepower, and 429 ft-lbs of torque. Featuring all-forged internals, cross bolted main journals, a nodular cast-iron block, and aluminum heads – Chrysler went all out on what would become one of the best V8s on the block in some time.

Detailed Specifications
  • Production and Manufacturing: This powerhouse has been in production since 2011 at the Saltillo Engine Plant in Ramos Arizpe, Mexico.
  • Materials Used: It boasts a robust cast iron cylinder block paired with lightweight aluminum cylinder heads.
  • Fuel System: Designed for optimal efficiency and performance, it utilizes a sequential multi-port fuel injection system.
  • Engine Configuration: This V8 engine features a V configuration with a total of 8 cylinders and 2 valves per cylinder, operating on an overhead valve (OHV) valvetrain layout.
  • Dimensional Details:
    • Bore: 103.9 mm (4.09 in)
    • Stroke: 94.6 mm (3.72 in)
    • Displacement: 6,407 cc (392 cu in)
  • Performance Range: Power output ranges from 366 to 485 hp, with torque between 429 and 475 ft-lb, hitting its stride between 4,600 and 6,000 rpm. The compression ratio is set at 10.9:1 for the SRT version and 10.0:1 for RAM trucks.
  • Maintenance and Weight: The engine weighs in at 500 lbs (227 kg) dry, holds 6.7 liters (7.0 quarts) of oil, and recommends an oil change every 6,000 miles (10,000 km) or six months, using SAE 0W-40 oil.
  • Firing Order: The engine fires in a 1-8-4-3-6-5-7-2 sequence, ensuring smooth and efficient power delivery.
Applications

This versatile engine finds its home in a range of vehicles, from the rugged Ram 2500 to the dynamic Dodge Challenger SRT8, Charger SRT8, and the luxurious Chrysler 300 SRT8, as well as the performance-oriented Jeep Grand Cherokee and Dodge Durango SRT models.

With its blend of power, precision, and craftsmanship, the 6.4L HEMI V8 stands as a testament to engineering excellence, ready to deliver an exhilarating driving experience across a diverse lineup of vehicles.



What is the recommended oil change interval?

The oil change interval is every 6,000 miles or 6 months.



What is the recommended engine oil weight and capacity?

The recommended oil weight is SAE 0W-40, and the capacity is 6.7 liters with the oil filter.



What is the firing order of the engine?

The firing order is 1-8-4-3-6-5-7-2.



What is the engine’s weight?

The engine has a dry weight of 500 pounds.



What is the engine’s compression ratio?

The compression ratio is 10.9:1 for the SRT version and 10.0:1 for Ram trucks.



What are the bore and stroke measurements?

The bore measures 103.9 mm, and the stroke is 94.6 mm.



What type of fuel system does the engine use?

It utilizes a sequential multi-port injection fuel system.



What are the materials used for the cylinder block and head?

The cylinder block is constructed of cast iron, while the cylinder head is made of aluminum.



Who manufactures the engine and where is it produced?

The engine is manufactured by Chrysler and produced at the Saltillo Engine plant in Ramos Arizpe, Mexico.



What vehicles use the 6.4L HEMI engine?

Chrysler currently produces the largest OE gasoline V8 engine commercially available, and it stuffs it in a multitude of vehicles from Dodge Chargers to RAM trucks.

Specifically, the powerhouse 6.4L HEMI engine can be found in a range of high-performance and heavy-duty models. For those seeking robust performance in trucks, it powers the Ram 2500, 3500, 4500, and 5500, along with the Cab Chassis.

Car enthusiasts will appreciate its presence in the Dodge Challenger SRT8, R/T Scat Pack, and SRT models. The Dodge Charger lineup also benefits from this engine in its SRT8, R/T Scat Pack, and SRT variants.

Furthermore, the Chrysler 300 SRT8 and SRT models are not left out, providing a blend of luxury and power. For SUV aficionados, the Jeep Grand Cherokee SRT8 and SRT, as well as the Dodge Durango SRT8 and SRT, offer the thrill of a muscle car with the convenience of an SUV.

This engine’s versatility across various models underscores its significance in Chrysler’s lineup, delivering exceptional performance from street to off-road adventures.



Does the 6.4L HEMI engine appear in specific trims or performance packages?

Yes, it appears in performance-oriented trims and packages such as the SRT8, R/T Scat Pack, and SRT variants across several models.



What range of vehicle types use the 6.4L HEMI engine?

This engine is featured in both performance cars and heavy-duty trucks, including models from Dodge, Chrysler, and Jeep, as well as RAM trucks and cab chassis.



Which exact models use the 6.4L HEMI engine?

The 6.4L HEMI engine is used in models such as the Dodge Challenger, Dodge Charger, Chrysler 300, Jeep Grand Cherokee, and Dodge Durango.



What is the fuel system and efficiency features of the 6.4L HEMI engine?

The vehicle of choice in this story is a 2017 RAM 2500 Power Wagon, which when stock had 285/70R17D Goodyear Wrangler Duratrac tires and a gear ratio of 4.11. Stock, the vehicle saw 12-13mpg returns in the city, and 16-17mpg on the highway. In its current iteration, the Power Wagon is now rolling on 37×13.50R20E Falken Wildpeak MT’s and 20×9.5” Trail Ready Beadlock wheels, and returns roughly the same fuel economy numbers.

Engine Fuel System and Efficiency

Under the hood, the 6.4L HEMI engine boasts a sequential multi-port injection fuel system. This advanced system provides precise fuel delivery, optimizing combustion and efficiency.

To further enhance fuel efficiency, the engine is equipped with the Multi Displacement System (MDS). This innovative technology deactivates four of the engine’s eight cylinders when full power isn’t necessary—such as during highway cruising. By cutting out the valve lifters for these cylinders, the system effectively reduces pumping losses, conserving fuel without compromising performance.

Fuel Compatibility

This powerhouse engine runs smoothly on 89 octane gasoline but is also capable of operating efficiently on standard 87 octane fuel. This flexibility ensures that whether you’re towing heavy loads or just cruising down the highway, the 6.4L HEMI delivers both power and efficiency.

By combining an understanding of the 6.4L HEMI engine’s capabilities with the robust features of the RAM 2500 Power Wagon, you get a vehicle that marries performance with practical fuel management.



What are the key design features of the 6.4L HEMI engine?

Chrysler currently produces the largest OE gasoline V8 engine commercially available, and it stuffs it in a multitude of vehicles from Dodge Chargers to RAM trucks. The 6.4L HEMI V8, known by the codename “Apache”, is a medium-duty 90-degree pushrod V8 with two large valves per cylinder, 16 spark plugs, 410 horsepower and 429ft-lbs of torque. Featuring all-forged internals, cross bolted main journals, a nodular cast-iron block and aluminum heads – Chrysler went all out on what would become one of the best V8s on the block in some time.

Key Design Features
  • Engine Block and Crankshaft: Built around a robust 90-degree, cast-iron cylinder block with a deep-skirt design, the 6.4L HEMI includes a forged steel crankshaft for enhanced durability.
  • Cooling and Efficiency: Piston cooling jets spray engine oil onto the pistons, aiding in heat dissipation. This necessitates an oil-to-water cooler, ensuring the engine runs efficiently even under stress. Additionally, the Multi Displacement System (MDS) deactivates four cylinders during low power demands to optimize fuel efficiency.
  • Internal Components: The engine boasts revised connecting rods made from higher-strength powder metal and larger-diameter flat-top pistons, enhancing its performance capabilities.
  • Cylinder Heads: The heads feature a semi-hemispherical combustion chamber with two valves and two spark plugs per cylinder. The intake and exhaust ports have been optimized for increased airflow, contributing to the engine’s power output.
  • Intake Manifold and Valve Timing: The truck variant includes an active dual-runner-length intake manifold, targeted for low- and mid-range engine speeds without sacrificing high-end power. A cam-in-block variable valve timing system with hydraulic cam phasing ensures precise valve operation.
Performance and Versatility

Whether roaring down the highway or hauling heavy loads, this engine is engineered for both raw power and refined efficiency. Its ability to run on both 89 and 87 octane gasoline adds to its versatility, making it a fitting powerhouse for a range of applications.



What efficiency systems are integrated into the engine?

The Multi Displacement System (MDS) is used for cylinder deactivation to enhance efficiency.



What variable valve timing system is used?

The engine features a cam-in-block variable valve timing system with hydraulic cam phasing.



What type of intake manifold is used, and how does it differ between models?

The SRT engines use a plastic intake manifold, while the truck versions have an active dual-runner-length intake manifold for varied engine speeds.



How do the cylinder heads compare to other models?

The cylinder heads are similar to those on the late 5.7 HEMI but offer improved port flow.



What materials and designs are used for the connecting rods and pistons?

The connecting rods are made of higher-strength powder metal, and the pistons are larger-diameter flat-top.



What type of oil cooling system does the engine have?

The engine is equipped with an oil-to-water oil cooler.



What cooling mechanisms are in place for the pistons?

Piston cooling jets, also known as oil squirters, spray engine oil to remove combustion heat.



What is the crankshaft made of?

The crankshaft is made from forged steel.



What is the material of the cylinder block?

The cylinder block is crafted from cast iron with a deep-skirt design.




You May Also Like

Custom Build: 2017 Toyota 4Runner

A career change built this impressive 2017 Toyota 4Runner. When life throws you a curveball, what better way to smash it out of the park […]

A Trip to Cowboy Country

We woke on day seven to yet another cold rainy morning in Grant Village. It had been in the low twenties overnight, so donning the […]

Austin Sharpe’s Off-Road Evolution: Building the Ultimate Tacoma

A One-of-a-Kind Tundra Prerunner Built for Multiple Needs Building your dream truck as a young gun has its challenges, especially when building it while supporting […]

MEGA 6x6 | Patriot Campers Monster Land Cruiser

The now famous LC79 4×4 ‘Black Truck’ just wasn’t enough. Justin Montesalvo, director of Patriot Campers, had to go bigger and more extreme and show […]
