2UZ-FE Engine: Complete Guide to Toyota’s 4.7L V8

Continuing our series on the best V-8s that you can get on the market, today we’re going to jump across the Pacific to Japan and take a look at Toyota’s legendary V-8 beast: the 2UZ-FE 4.7L engine.

2UZ-FE Engine Overview

• Engine code: 2UZ-FE
• Type: 4.7L 90° V8 DOHC, 32-valve
• Displacement: 4,663 cc (284.6 cubic in)
• Block material: Cast-iron (for strength & durability)
• Cylinder heads: Aluminum DOHC
• Fuel system: Multi-port fuel injection
• Compression ratio: 9.6:1 (varies by model)
• Applications: Toyota Land Cruiser, Lexus GX/LX, 4Runner, Tundra

Power Output

• Early models: ~240 hp / 315 lb-ft torque
• VVT-i models (2005+): ~282 hp / 325 lb-ft torque
• With TRD supercharger: ~400 hp

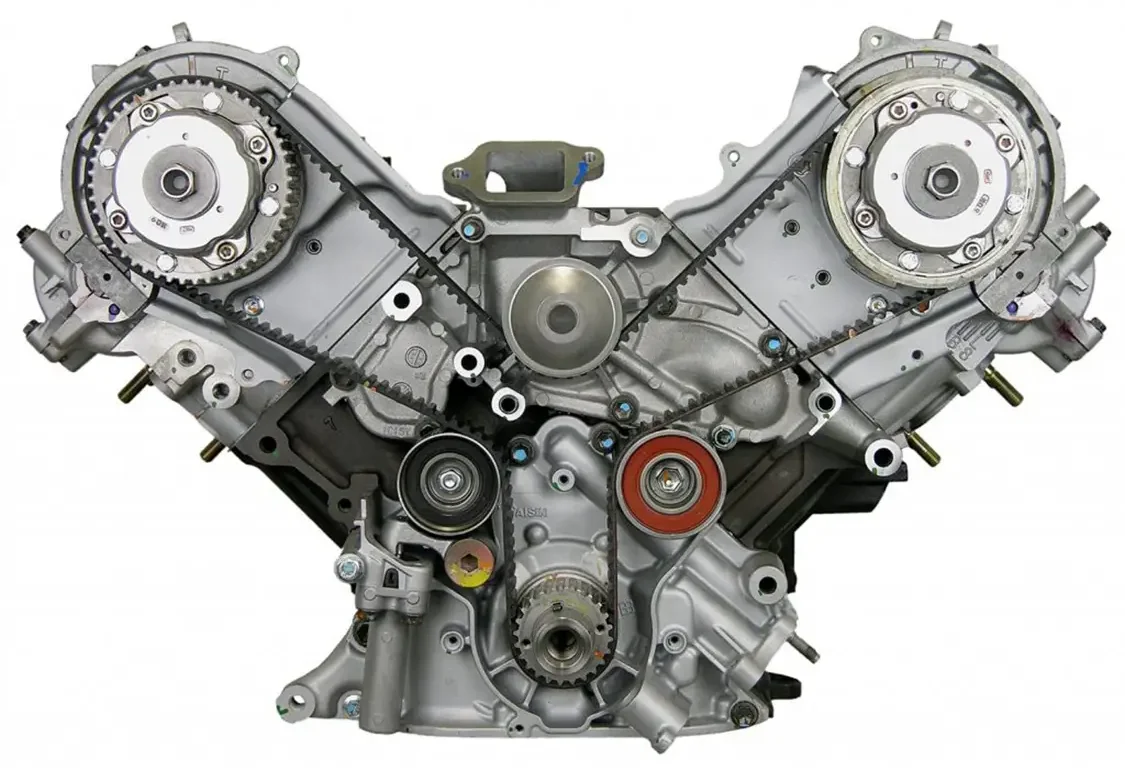

The 2UZ-FE is a 4.7L 90º V8, 32 valve DOHC gasoline engine built at Toyota’s engine plant in Tahara, Aichi prefecture in Japan, as well as at Toyota’s American TMM plant in Alabama.

During the design process, Toyota looked to American truck manufacturers and decided on a high-strength cast-iron block over aluminum to increase durability as the engine was being designed for a low-revving and high-torque pickup and SUV application.

Weighing in at 284.6 cubic inches, it also features aluminum DOHC cylinder heads, multi-port fuel injection, four valves per cylinder with bucket tappets, four one-piece cast camshafts and a cast aluminum intake manifold/runner.

In 2005, the valve train was upgraded and received cam-phasing in the form of Toyota’s VVT-i (Variable Valve Timing – Intelligent).

The original power numbers vary slightly based on application; upon its introduction to the U.S. market, the engine cranked out 240hp with 315 lb-ft of torque. However, the latest models with VVT-i push out a healthy 282hp and are capable of 325 lb-ft of torque.

There have been countless cases of these engines rolling well over 1,000,000 miles without issue. The engines have been used across the 100-series Land Cruiser and its Lexus GX and LX variants, the fourth generation 4Runner, and the Tundra.

Toyota’s TRD division also offered a bolt-on roots-type supercharger kit for the engine, increasing its power by an additional 118hp to an even 400hp making it a potent option.

While the Toyota TRD supercharger is no longer in production, they can easily be found second hand on eBay or other online entities.

Read More: How Fuel Injection Works – Direct vs Port Injectors

FREQUENTLY ASKED QUESTIONS

What are the common reliability issues and maintenance requirements for the Toyota 2UZ-FE engine?

Reliability and Maintenance of the Toyota 2UZ-FE Engine:

When it comes to reliability, the Toyota 2UZ-FE engine is a standout performer, renowned for its durability. Built with a robust cast-iron block and delivering a balanced power output, this engine is celebrated for its capacity to run reliably over extensive mileage. But like any engine, it requires regular maintenance to maximize its longevity.

Common Maintenance Practices:

• Oil Changes: Regular oil changes are crucial, typically following the manufacturer’s recommendations. This keeps the engine lubricated and functioning smoothly.
• Valve Adjustments: Occasionally, adjusting the valves ensures optimal performance and prevents potential issues down the line.
• Timing Belt Replacement: One critical aspect to watch is the timing belt. It should be replaced every 50,000 to 60,000 miles. Neglecting this could lead to severe damage, as a broken timing belt might cause the pistons to collide with the valves.

Reliability Considerations:

While the 2UZ-FE is remarkably dependable, it’s not entirely without issues. However, significant problems are rare, especially when regular maintenance is upheld. A complete service history is particularly valuable when purchasing a used engine to verify consistent maintenance.

Tips for Longevity:

• Full-Service History: When acquiring a used engine, ensure there’s a comprehensive service history to validate proper care.
• Watch for VVTi Models: Opting for VVTi-equipped models, typically post-2005, can provide benefits like enhanced power and fuel efficiency.
• Forced Induction Caution: While adding superchargers can boost performance, it may also introduce extra stress. Stick to low-boost setups to maintain reliability.

By keeping up with these essential maintenance practices, the 2UZ-FE engine can effortlessly exceed 300,000 miles, testament to its legendary reliability.

Read More: The Legendary Toyota 2JZ-GTE Engine: Everything You Need to Know

Is the Toyota 2UZ-FE engine a good candidate for engine swaps in other vehicles?

Absolutely, the Toyota 2UZ-FE engine is an excellent choice for engine swaps. While the 1UZ-FE often garners attention in the swapping community, the 2UZ-FE has steadily built a reputation for delivering reliable performance.

Why Opt for the 2UZ-FE?

• Durability and Longevity: Known for its robust construction, the 2UZ-FE is engineered to last. Its cast-iron block provides exceptional strength, making it suitable for vehicles that endure heavy use.
• Torque and Power: This engine offers impressive torque, which is crucial for applications requiring strong pulling power. Its design is tailored for utility, providing a blend of power and efficiency.

Availability and Cost-Effectiveness: The 2UZ-FE is widely available and typically more affordable than some of its high-performance counterparts, making it accessible for those on a budget.

Who Should Consider It?

The 2UZ-FE is perfect for enthusiasts looking to enhance their vehicle with a focus on reliability and torque rather than high-speed performance. It’s particularly favored in trucks and SUVs where these attributes excel.

In summary, the Toyota 2UZ-FE stands as a solid choice for engine swaps, delivering the durability and power required for a variety of vehicles, ensuring satisfaction for those who choose it as their motor upgrade.

What is the Toyota 2UZ-FE engine and how does it compare to the 1UZ-FE?

Comparing the 2UZ-FE to the 1UZ-FE:

The 2UZ-FE, while not as celebrated as its sibling the 1UZ-FE, offers unique advantages that make it a compelling choice for specific applications. The 1UZ-FE, known for its higher horsepower, especially in its later VVTi variation reaching up to 300 hp, often takes the spotlight. However, the 2UZ-FE distinguishes itself with superior torque, delivering 315 lb-ft at 3,400 rpm, compared to the 1UZ-FE’s 310 lb-ft at 4,000 rpm.

This torque performance makes the 2UZ-FE particularly suitable for heavier vehicles like trucks and SUVs, enhancing their towing and hauling capabilities. While the 1UZ-FE’s aluminum construction is preferred for lighter, high-revving applications, the 2UZ-FE’s cast-iron block contributes to its durability and reliability, characteristics essential for rugged use.

Evolution and Tuning Potential:

Toyota initially built upon the 1UZ-FE’s foundation, opting for a larger displacement of 4.7L in the 2UZ-FE. This transition included maintaining reliability while enhancing low-end torque. For those interested in engine swaps or modifications, the 2UZ-FE offers a robust platform capable of handling substantial power increases, making it ideal for tuners aiming to cross the four-figure horsepower barrier.

There have been countless cases of these engines rolling well over 1,000,000 miles without issue. The engines have been used across the 100-series Land Cruiser and its Lexus GX and LX variants, the fourth generation 4Runner, and the Tundra. Toyota’s TRD division also offered a bolt-on roots-type supercharger kit for the engine, increasing its power by an additional 118hp to an even 400hp making it a potent option. While the Toyota TRD supercharger is no longer in production, they can easily be found second hand on eBay or other online entities.

In summary, the 2UZ-FE stands as a testament to Toyota’s engineering prowess, offering a blend of power, durability, and adaptability that makes it a valuable asset for various automotive enthusiasts, particularly those seeking a reliable yet potent V8 engine.

What maintenance considerations are important for the 2UZ-FE?

Regular servicing and maintenance are crucial, with proper care allowing the engine to potentially exceed 300,000 miles in lifespan.

What are the implications of the engine’s construction for different vehicle types?

The 2UZ-FE is tailored for trucks and SUVs, thanks to its strong torque and robust construction, making it less ideal for cars that prioritize lighter weight and higher horsepower, thereby limiting its appeal for certain car applications.

What design changes differentiate the 2UZ-FE from the 1UZ-FE?

The 2UZ-FE features a cast-iron block, which improves reliability and increases displacement to 4.7L, a shift from the aluminum block design of the 1UZ-FE. These changes make the 2UZ-FE better suited for certain applications, despite a slight decrease in horsepower.

How do the torque outputs of the 2UZ-FE and 1UZ-FE compare?

The 2UZ-FE excels in torque delivery, offering 315 lb-ft at 3,400 rpm. This is a notable advantage over the 1UZ-FE, which delivers 310 lb-ft at a higher 4,000 rpm, highlighting the 2UZ-FE’s strength in lower-end torque.

What are the differences in horsepower between the 2UZ-FE and the 1UZ-FE?

The 1UZ-FE, especially with its later VVTi version, can produce up to 300 horsepower, whereas the 2UZ-FE manages a slightly lower output of 271 horsepower, reflecting its different tuning priorities.

What modifications and tuning potential does the Toyota 2UZ-FE engine have?

2UZ-FE’s Modification Potential:

Much like its cousin, the 1UZ, the 2UZ-FE may not have the easiest aftermarket path compared to legends like the 2JZ Engine, but determined tuners will find abundant opportunities to unlock its true power. The 2UZ is blessed with a cast-iron block that’s nearly indestructible, capable of handling substantial horsepower figures, potentially up to the 1,500 hp mark. This robust build makes it an excellent candidate for forced induction.

Compatibility and Interchangeability:

Most parts designed for the 1UZ can seamlessly fit the 2UZ due to their similarities. This interchangeability offers a wealth of aftermarket options, allowing for creative tuning possibilities. Enthusiasts can leverage the 1UZ’s aluminum block components with the 2UZ’s stronger cast-iron block to create a powerhouse hybrid of performance and durability.

Forced Induction Considerations:

The 2UZ-FE shines when it comes to forced induction. While the TRD supercharger kit was a popular choice, aftermarket options continue to thrive. To safely boost performance, ensure supporting modifications like a cold air intake and upgraded exhaust are in place. Fuel injectors and other essential bolt-ons can push the engine up to around 375 horsepower with low boost. For those willing to delve deeper, surpassing 450 horsepower isn’t uncommon.

Enthusiasts have also speculated about the differences between US-built and Japanese (JDM) versions of the engine, with the latter rumored to have superior internals. This has made certain models, particularly the 4Runner 2UZ, highly sought after for swaps. Although sourcing a 4Runner engine can be challenging, starting with a 2002-onwards model and upgrading critical components can yield impressive results.

In the realm of potential, the 2UZ stands as a formidable contender, ready to deliver exceptional performance with the right enhancements.

What are the strengths of the 2UZ-FE’s cast-iron block compared to the 1UZ’s aluminum block?

The cast-iron block of the 2UZ-FE is exceptionally robust, capable of handling significant horsepower. Its durability surpasses the aluminum block of the 1UZ, potentially allowing for greater power without compromising structural integrity.

What are the material and design differences between the 1UZ-FE and the 2UZ-FE?

The 2UZ-FE uses a cast-iron block instead of the aluminum block found in the 1UZ-FE, which enhances durability and reliability but also adds weight.

What was Toyota’s intention in developing the 2UZ-FE compared to the 1UZ-FE?

Toyota aimed to create a more robust engine tailored for SUVs and trucks, focusing on high torque and reliability rather than the high horsepower needed for cars, which was the primary focus with the 1UZ-FE.
